| Mode: | YB85-2.8 | Rated flow m3/h: | 2.8 |
|---|---|---|---|
| pressure Mpa: | 0-2.5 | Size mm: | 1215*850*1500 |
| Supporting facility: | 400 type spray tower | ||
| Điểm nổi bật: | pressure pumping equipment,industrial pumps |
||

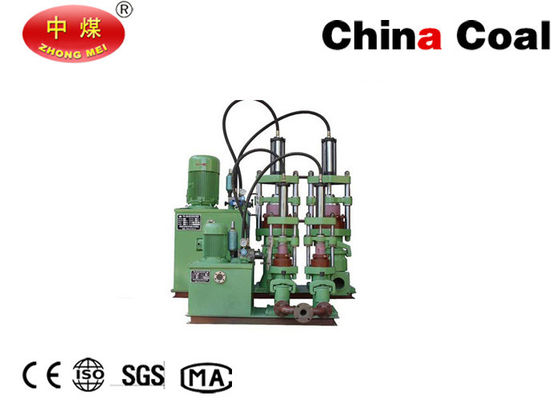

YB Slurry Pump High Pressure Hydraulic Piston Pump to Transport Ceramic Slurry
YB slurry pump,slurry pump, pump
Product Introduction
Smooth operation, high pressure, noise is small, compact design, convenient operation and maintenance, and long service life.Mainly used in the spray drying tower for pulp, match filter press and long-distance transmission of mud, rack cleaner, coal-water fluid and other suspension.
Main Parameter
|
Model |
Rated flow m3/h |
pressure Mpa |
Size mm |
Supporting facility |
|
YB85-2.8 |
2.8 |
0-2.5 |
1215*850*1500 |
400 type spray tower |
|
YB110-5.8 |
5.8 |
0-2.5 |
1580*1000*1600 |
2000 type spray tower |
|
YB120-7.1 |
7.1 |
0-2.5 |
1580*1000*1600 |
2500-3200 type spray tower |
|
YB140-10 |
10 |
0-2.5 |
1580*1000*1600 |
4000 type spray tower |
|
YB140-10-N |
10 |
0-2.0 |
1580*1000*1600 |
pressure filter |
|
YB200-19 |
19 |
0-2.5 |
1690*1200*1800 |
spray tower |
|
YB200D-24 |
24 |
0-1.5 |
1690*1200*1800 |
tower |
|
YB250-25 |
25 |
0-2.0 |
1950*1300*2200 |
Tower above 500
|
