Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Dimension(L*W*H): | 9.1*1.72*1.47m | Voltage: | 380V 3phase 50Hz |
|---|---|---|---|
| Weight: | 10.5T,8000KGS | Material thickness: | 0.6mm |
| Power: | 8.5kw | Chứng nhận: | ISO9001,CE |
| Điểm nổi bật: | steel frame machine,light gauge steel framing machines |
||

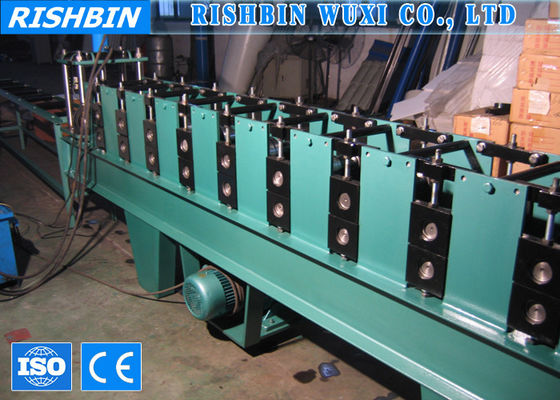

Gear Box Driving Drywall Partition Wall Angle Roll Forming Machine for Wall Frame
Basic Information of Wall Angle Roll Forming Machine
|
Description |
Introduction |
|
Working efficiency |
5-25m/min |
|
Thickness of Material |
0.6mm |
|
Width of material |
130mm |
|
Control system |
PLC |
|
Uncoiler system |
1.5Ton |
|
Forming by rolling |
Roll 12 rows |
|
Roller material |
GCr12MoV (SKD11) Aluminium processing after quenchin HRC58-62 °C, Chrome |
|
Shaft diameter of axle |
45#Aluminium-processing , diameter of axle=￠40mm |
|
Main part power |
5.5kw |
|
Hydraulic motor power |
3kw |
|
Hydraulic pressure |
12Mpa |
|
Scissor material |
Cr12Mov, herd steel HRC 58-62°C |
|
length tolerance |
±1.5mm |
|
voltage |
380V, 50HZ,3 phase |
|
Driving Method |
Gear box |
|
Color |
Customize |
|
weight |
3.5T |
|
Package |
Nude package in 1*20GP container |
|
Delivery date |
30 working days |
It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Loading capacity: 1.5T
Uncoiling width: 300mm
Inner diameter: 450-550mm
Entry Beach
Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Hydraulic Station
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Hydraulic motor Power: 3kw
Hydraulic oil: 46#
Volume: 60L
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Electric Control System
1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2.Other electric element are Delta
3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
Sample Photo
