Heavy Duty H Beam Straightening Machine With Hydraulic Pump for Large Flange

Hình ảnh lớn : Heavy Duty H Beam Straightening Machine With Hydraulic Pump for Large Flange

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	H-WELDING
Chứng nhận:	CE
Model Number:	YTJ80

Thanh toán:

Minimum Order Quantity:	1 Set
Giá bán:	negotiation
Packaging Details:	Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time:	15 working days after received your payment
Payment Terms:	30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability:	30sets per month

Tiếp xúc

Chi tiết sản phẩm

Product Name:	Heavy Duty H Beam Straightening Machine	Application:	H beam straightening
Straightening type:	Mechanical	Conveyor:	Lifting type
Available flange thickness:	Less then 80mm	Linkage control:	Available
Input conveyor:	4.5m*2	Output conveyor:	4.5m*2
Điểm nổi bật:	h beam production line , beam straightening machine

Heavy Duty H Beam Straightening Machine Working On Bigger Flange Thickness With Hydraulic Pump

Specifications:

Type	HYJ-600	HYJ-800	YJB-60	YTJ-80
Flange width (mm)	150-600	200-800	200-800	200-1000
Flange thickness (mm)	≤ 20	≤ 40	≤ 60	≤ 80
Min.web height (mm)	160	350	350	500
Material	Q235A	Q235A	Q345A	Q345A
Straightening speed(m/min)	8.5	18	6.37	6
Motor power (KW)	9	25	37	44
Leveling Type	Mechanical Type		Hydraulic Type

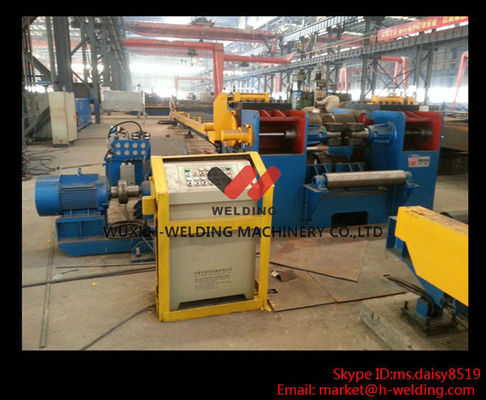

Heavy Duty H Beam Straightening Machine With Hydraulic Pump for Large Flange 0

Description:

The machine consists of motor reducer,transmission roller,straightening-roller unit,elevating oil-cylinder of driving roller,web-clamp unit,main frame,base,front and rear swing-type elevating conveyor,hydraulic and electric system.
It features in compact structure,great strength and good rigidity.

Applications:

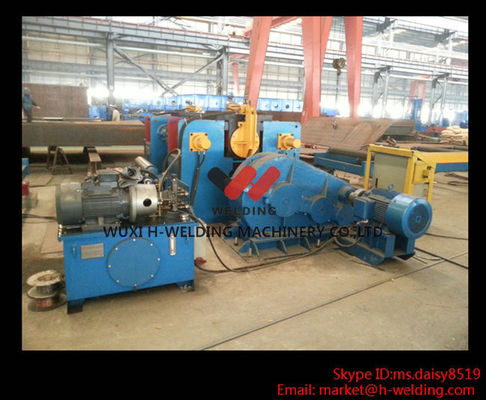

Top straightening roller see follow picture. It is shaft-case structure, of great loading capacity.
Distance adjustment is fulfilled with hydraulic cylinder, stable and reliable. The shaft-case mounting straightening rollers and their revolving-shaft can slide along transverse direction integrally under pushing of oil cylinder, with position displayed on the top gauge.

Competitive Advantage:

In this way,distance between 2 pairs of top straightening rollers can be modulated accordingly for different specifications of H-beam. That is, various top-roller distances can be adjusted with respect to different flange thickness.

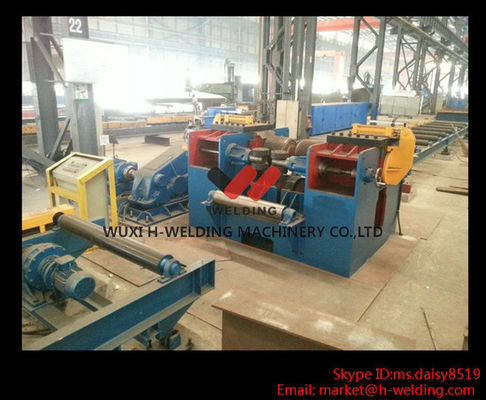

Heavy Duty H Beam Straightening Machine With Hydraulic Pump for Large Flange 1
