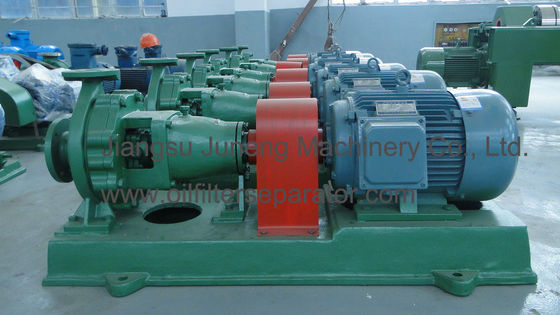

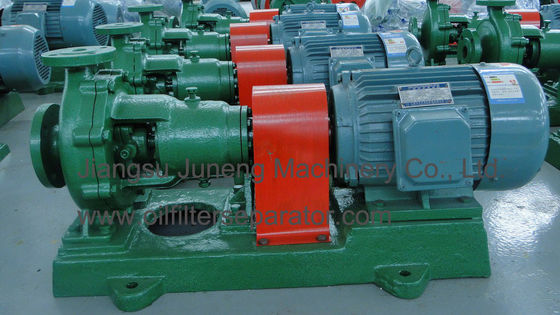

Chemical Centrifugal Transfer Pump High Pressure Horizontal Split Type Speed 2900 r/min
Product description:
IHK series centrifugal pump for chemical engineering is a pump for chemical industry, which is designed and manufactured according to international standard. It has a novel design, unique structure, strong adaptability, especially suitable for transmitting liquid containing solid particles and various suspended liquids in such industries as petroleum, chemical, grease, domestic chemical, medicine and food, etc. With different materials, the pumps can transmit in an excellent way all kinds of corrosive liquids. The transmitting temperature of the pump normally is -20°C~180°C, and up to 350°C for those with special structure. Generally, the pumps are made of stainless steel or carbon steel. They can be of other materials on request.
IHK chemical and industrial centrifugal pump is applied in the industries of chemical and industry, petroleum, lipid, medicine and foodstuff to feed the liquid including the grain with tick strength (about 10% ) and various suspending liquid. When selecting different materials, it can be used to feed cauterization liquids. The medium temperature of transport is usually-20℃-180℃ and with the special structure, it can get to 380℃.
QC/Technical Support
1, Every company deeply understand that quality is the basic weapon for an enterprise to win. Quality is one of the factor that helped the business to achieve success, so we strive to provide qualitative business.
2, Our Quality Control department is comprised of experienced engineers, technicians and QC inspectors. The best products from the high reputation company and will do better than any other company.
Product competitive advantage:
1, The structure of the pump conforms to international standard. The impellers are tape open structure. It’s suitable for the liquid with high solids concentration and various suspension.
2, It’s horizontal split type and back pullout construction. It needn’t to dismount pipes and motor when maintenance.
3, Shaft seal introduce mechanical seal and power seal. It’s safety and reliable.
4, Wear parts of the cover of impeller can interchange. Repairing work is simple which reduces costs.
5, Rotors of the pump can compensate in axial, which can increase its service life.
Product Specifications:
|
Model |
Flow Q m3/h |
Lift H m |
Speed r/min |
Power kW |
NPSHr m |
|
IHK40-25-180 |
6.3 |
40 |
2900 |
4 |
2.3 |
|
IHK50-32-200 |
12.5 |
50 |
2900 |
7.5 |
2.3 |
|
IHK65-40-250 |
25 |
80 |
2900 |
18.5 |
2.3 |
